Machining Case Study
KXG250TD 0612-S Ball Nose Insert for Stamping Die Machining
Stable finishing performance on SKD11, HRC60–62 stamping die steel
Workpiece Material
SKD11 / HRC60–62
Tool Used
KXG250TD 0612-S
Machining Result
Wear less than 0.01 mm
After 6 hours of single-point cutting.
Replacement Direction
Alternative to DIJET DH102
For flat surface finishing applications.
Machining Parameters
High-hardness SKD11 finishing test data.
| Machine | VELE Gantry Machining Center |
|---|---|
| Tool Holder | DIJET Modular Tool Holder |
| Milling Method | Bottom Cutting / End Cutting |
| Spindle Speed | 6000 rpm |
| Feed Rate | 5000 mm/min |
| Axial Depth of Cut, ap | 0.05 mm |
| Radial Depth of Cut, ae | 0.3 mm |
| Customer Evaluation Criteria | Finishing tool life and tool wear |
| Machining Time / Result | Tool wear was less than 0.01 mm after 6 hours of single-point cutting. A direct alternative to DIJET DH102 for flat surface machining. |

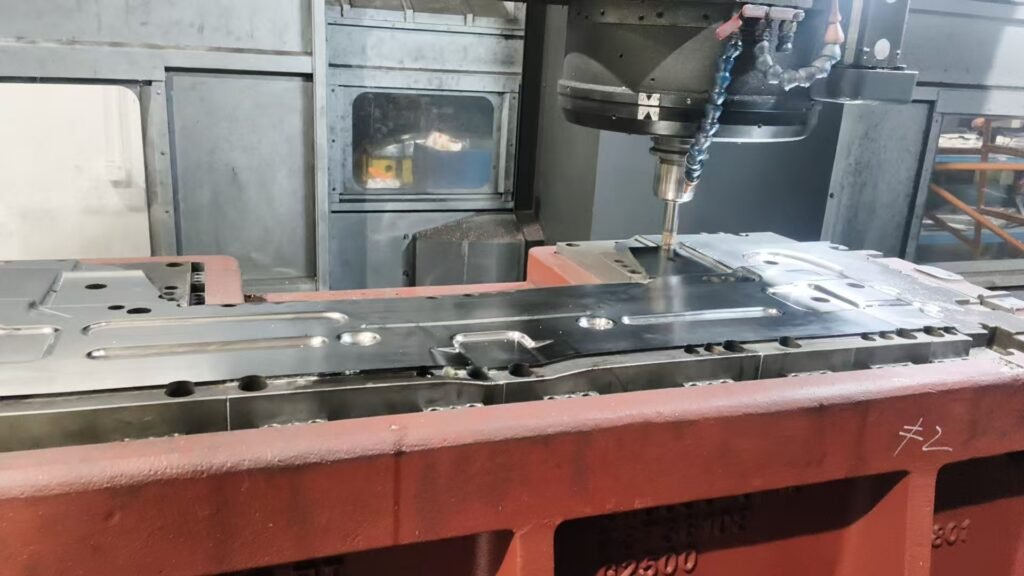

Machining Scene
Stamping Die Machining Scene
Need to validate a tool for a similar finishing application?
Share your material, hardness, tool size, overhang, operation, and current tool reference. We will review the application and suggest a suitable test tool.
Verified Cutting Result
Stable finishing tool life with cutting-edge wear maintained below 0.01 mm after 6 hours of single-point cutting.
Machining Time
6 h
Continuous single-point cutting test duration.
Material Hardness
HRC60–62
High-hardness SKD11 mold steel finishing condition.
Feed Rate
5000 mm/min
Programmed feed rate during the machining test.
Replacement Direction
Suitable as a practical alternative to DIJET DH102 for flat surface finishing applications.
