VGPHX-KCVT2001L0.2 0450

Tool Type: 2-Flute Long Neck Ball End Mill
Product Series: V.G PHX
Hardness Range: HRC 50–64
Flute Count: 2

Application: Automotive Lighting Molds, Copper Machining, Deep Cavity Machining, Electronic Molds, Precision Machining
Workpiece Material: Copper Alloy, Hardened Steel

Filter standard models

Model number

Diameter

Radius

Neck length

Shank

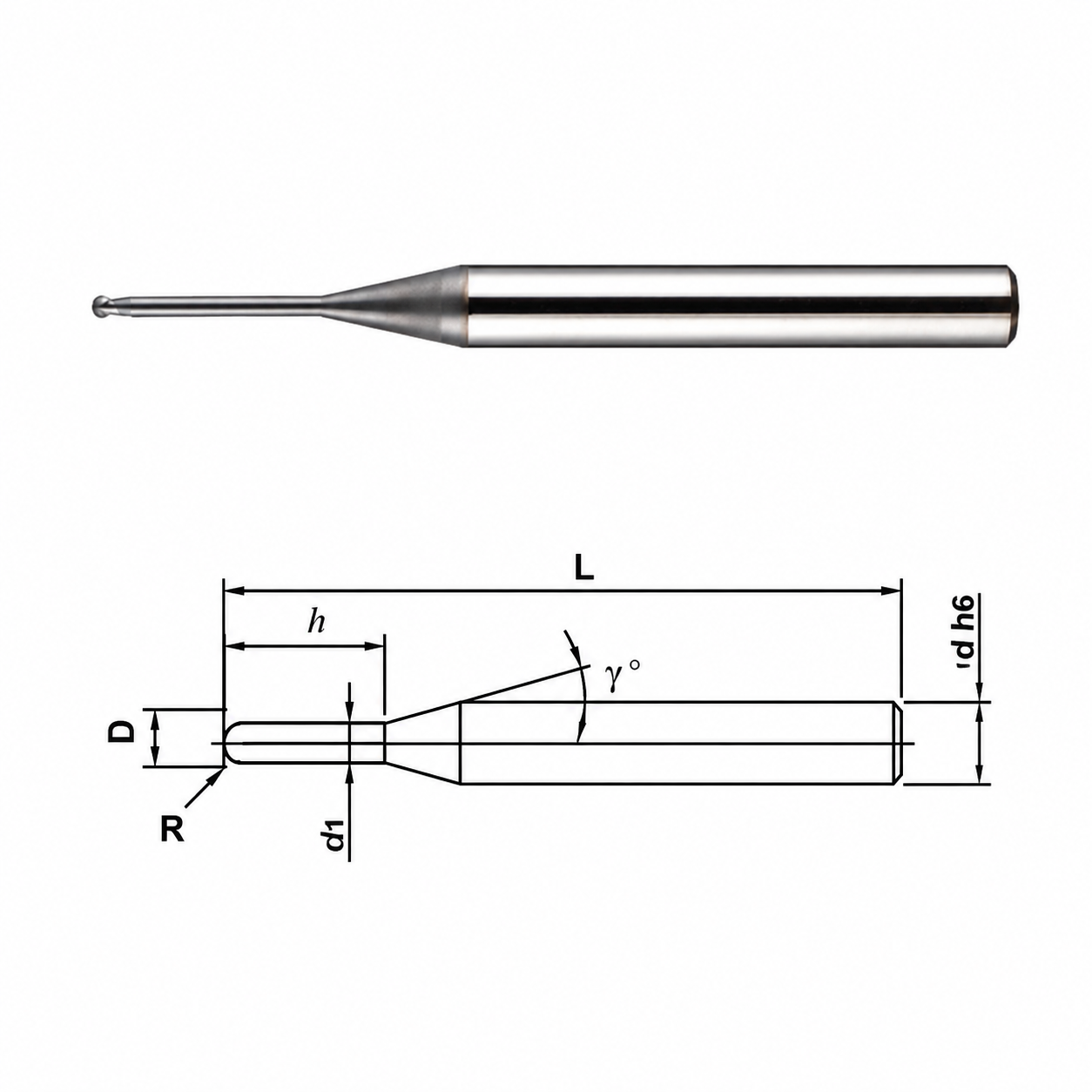

Standard model dimensions for VGPHX-KCVT2001L0.2 0450
Model number	D	R	Neck Length	LOC	Neck Dia.	Taper	OAL	Shank	Action
KCVT2001L0.2 0450	0.1	R0.05	0.2	0.07	0.085	12°	50	4	Request model
KCVT2001L0.3 0450	0.1	R0.05	0.3	0.07	0.085	12°	50	4	Request model
KCVT2001L0.5 0450	0.1	R0.05	0.5	0.07	0.085	12°	50	4	Request model
KCVT2001L0.75 0450	0.1	R0.05	0.75	0.07	0.085	12°	50	4	Request model
KCVT2001L1 0450	0.1	R0.05	1	0.07	0.085	12°	50	4	Request model
KCVT20015L0.3 0450	0.15	R0.075	0.3	0.1	0.13	12°	50	4	Request model
KCVT20015L0.5 0450	0.15	R0.075	0.5	0.1	0.13	12°	50	4	Request model
KCVT20015L0.75 0450	0.15	R0.075	0.75	0.1	0.13	12°	50	4	Request model
KCVT20015L1 0450	0.15	R0.075	1	0.1	0.13	12°	50	4	Request model
KCVT20015L1.5 0450	0.15	R0.075	1.5	0.1	0.13	12°	50	4	Request model
KCVT2002L0.3 0450	0.2	R0.1	0.3	0.15	0.18	12°	50	4	Request model
KCVT2002L0.5 0450	0.2	R0.1	0.5	0.15	0.18	12°	50	4	Request model
KCVT2002L0.75 0450	0.2	R0.1	0.75	0.15	0.18	12°	50	4	Request model
KCVT2002L1 0450	0.2	R0.1	1	0.15	0.18	12°	50	4	Request model
KCVT2002L1.25 0450	0.2	R0.1	1.25	0.15	0.18	12°	50	4	Request model
KCVT2002L1.5 0450	0.2	R0.1	1.5	0.15	0.18	12°	50	4	Request model
KCVT2002L1.75 0450	0.2	R0.1	1.75	0.15	0.18	12°	50	4	Request model
KCVT2002L2 0450	0.2	R0.1	2	0.15	0.18	12°	50	4	Request model
KCVT2002L2.5 0450	0.2	R0.1	2.5	0.15	0.18	12°	50	4	Request model
KCVT2002L3 0450	0.2	R0.1	3	0.15	0.18	12°	50	4	Request model
KCVT2003L0.5 0450	0.3	R0.15	0.5	0.2	0.28	12°	50	4	Request model
KCVT2003L0.6 0450	0.3	R0.15	0.6	0.2	0.28	12°	50	4	Request model
KCVT2003L0.75 0450	0.3	R0.15	0.75	0.2	0.28	12°	50	4	Request model
KCVT2003L1 0450	0.3	R0.15	1	0.2	0.28	12°	50	4	Request model
KCVT2003L1.25 0450	0.3	R0.15	1.25	0.2	0.28	12°	50	4	Request model
KCVT2003L1.5 0450	0.3	R0.15	1.5	0.2	0.28	12°	50	4	Request model
KCVT2003L1.75 0450	0.3	R0.15	1.75	0.2	0.28	12°	50	4	Request model
KCVT2003L2 0450	0.3	R0.15	2	0.2	0.28	12°	50	4	Request model
KCVT2003L2.25 0450	0.3	R0.15	2.25	0.2	0.28	12°	50	4	Request model
KCVT2003L2.5 0450	0.3	R0.15	2.5	0.2	0.28	12°	50	4	Request model
KCVT2003L3 0450	0.3	R0.15	3	0.2	0.28	12°	50	4	Request model
KCVT2003L3.5 0450	0.3	R0.15	3.5	0.2	0.28	12°	50	4	Request model
KCVT2003L4 0450	0.3	R0.15	4	0.2	0.28	12°	50	4	Request model
KCVT2004L0.5 0450	0.4	R0.2	0.5	0.3	0.37	12°	50	4	Request model
KCVT2004L0.8 0450	0.4	R0.2	0.8	0.3	0.37	12°	50	4	Request model
KCVT2004L1 0450	0.4	R0.2	1	0.3	0.37	12°	50	4	Request model
KCVT2004L1.5 0450	0.4	R0.2	1.5	0.3	0.37	12°	50	4	Request model
KCVT2004L2 0450	0.4	R0.2	2	0.3	0.37	12°	50	4	Request model
KCVT2004L2.5 0450	0.4	R0.2	2.5	0.3	0.37	12°	50	4	Request model
KCVT2004L3 0450	0.4	R0.2	3	0.3	0.37	12°	50	4	Request model
KCVT2004L3.5 0450	0.4	R0.2	3.5	0.3	0.37	12°	50	4	Request model
KCVT2004L4 0450	0.4	R0.2	4	0.3	0.37	12°	50	4	Request model
KCVT2004L4.5 0450	0.4	R0.2	4.5	0.3	0.37	12°	50	4	Request model
KCVT2004L5 0450	0.4	R0.2	5	0.3	0.37	12°	50	4	Request model
KCVT2004L6 0450	0.4	R0.2	6	0.3	0.37	12°	50	4	Request model
KCVT2004L8 0450	0.4	R0.2	8	0.3	0.37	12°	50	4	Request model
KCVT2005L1 0450	0.5	R0.25	1	0.35	0.46	12°	50	4	Request model
KCVT2005L1.5 0450	0.5	R0.25	1.5	0.35	0.46	12°	50	4	Request model
KCVT2005L2 0450	0.5	R0.25	2	0.35	0.46	12°	50	4	Request model
KCVT2005L2.5 0450	0.5	R0.25	2.5	0.35	0.46	12°	50	4	Request model
KCVT2005L3 0450	0.5	R0.25	3	0.35	0.46	12°	50	4	Request model
KCVT2005L3.5 0450	0.5	R0.25	3.5	0.35	0.46	12°	50	4	Request model
KCVT2005L4 0450	0.5	R0.25	4	0.35	0.46	12°	50	4	Request model
KCVT2005L4.5 0450	0.5	R0.25	4.5	0.35	0.46	12°	50	4	Request model
KCVT2005L5 0450	0.5	R0.25	5	0.35	0.46	12°	50	4	Request model
KCVT2005L5.5 0450	0.5	R0.25	5.5	0.35	0.46	12°	50	4	Request model
KCVT2005L6 0450	0.5	R0.25	6	0.35	0.46	12°	50	4	Request model
KCVT2005L8 0450	0.5	R0.25	8	0.35	0.46	12°	50	4	Request model
KCVT2005L10 0450	0.5	R0.25	10	0.35	0.46	12°	50	4	Request model
KCVT2006L1 0450	0.6	R0.3	1	0.45	0.56	12°	50	4	Request model
KCVT2006L1.5 0450	0.6	R0.3	1.5	0.45	0.56	12°	50	4	Request model
KCVT2006L2 0450	0.6	R0.3	2	0.45	0.56	12°	50	4	Request model
KCVT2006L2.5 0450	0.6	R0.3	2.5	0.45	0.56	12°	50	4	Request model
KCVT2006L3 0450	0.6	R0.3	3	0.45	0.56	12°	50	4	Request model
KCVT2006L3.5 0450	0.6	R0.3	3.5	0.45	0.56	12°	50	4	Request model
KCVT2006L4 0450	0.6	R0.3	4	0.45	0.56	12°	50	4	Request model
KCVT2006L4.5 0450	0.6	R0.3	4.5	0.45	0.56	12°	50	4	Request model
KCVT2006L5 0450	0.6	R0.3	5	0.45	0.56	12°	50	4	Request model
KCVT2006L5.5 0450	0.6	R0.3	5.5	0.45	0.56	12°	50	4	Request model
KCVT2006L6 0450	0.6	R0.3	6	0.45	0.56	12°	50	4	Request model
KCVT2006L7 0450	0.6	R0.3	7	0.45	0.56	12°	50	4	Request model
KCVT2006L8 0450	0.6	R0.3	8	0.45	0.56	12°	50	4	Request model
KCVT2006L9 0450	0.6	R0.3	9	0.45	0.56	12°	50	4	Request model
KCVT2006L10 0450	0.6	R0.3	10	0.45	0.56	12°	50	4	Request model
KCVT2006L12 0450	0.6	R0.3	12	0.45	0.56	12°	50	4	Request model
KCVT2007L2 0450	0.7	R0.35	2	0.5	0.66	12°	50	4	Request model
KCVT2007L3 0450	0.7	R0.35	3	0.5	0.66	12°	50	4	Request model
KCVT2007L4 0450	0.7	R0.35	4	0.5	0.66	12°	50	4	Request model
KCVT2007L6 0450	0.7	R0.35	6	0.5	0.66	12°	50	4	Request model
KCVT2007L8 0450	0.7	R0.35	8	0.5	0.66	12°	50	4	Request model
KCVT2008L2 0450	0.8	R0.4	2	0.6	0.76	12°	50	4	Request model
KCVT2008L2.5 0450	0.8	R0.4	2.5	0.6	0.76	12°	50	4	Request model
KCVT2008L3 0450	0.8	R0.4	3	0.6	0.76	12°	50	4	Request model
KCVT2008L4 0450	0.8	R0.4	4	0.6	0.76	12°	50	4	Request model
KCVT2008L5 0450	0.8	R0.4	5	0.6	0.76	12°	50	4	Request model
KCVT2008L6 0450	0.8	R0.4	6	0.6	0.76	12°	50	4	Request model
KCVT2008L7 0450	0.8	R0.4	7	0.6	0.76	12°	50	4	Request model
KCVT2008L8 0450	0.8	R0.4	8	0.6	0.76	12°	50	4	Request model
KCVT2008L10 0450	0.8	R0.4	10	0.6	0.76	12°	50	4	Request model
KCVT2008L12 0450	0.8	R0.4	12	0.6	0.76	12°	50	4	Request model
KCVT2008L16 0450	0.8	R0.4	16	0.6	0.76	12°	50	4	Request model
KCVT2009L2 0450	0.9	R0.45	2	0.65	0.86	12°	50	4	Request model
KCVT2009L4 0450	0.9	R0.45	4	0.65	0.86	12°	50	4	Request model
KCVT2009L6 0450	0.9	R0.45	6	0.65	0.86	12°	50	4	Request model
KCVT2009L8 0450	0.9	R0.45	8	0.65	0.86	12°	50	4	Request model
KCVT2010L2.5 0450	1	R0.5	2.5	0.75	0.95	12°	50	4	Request model
KCVT2010L3 0450	1	R0.5	3	0.75	0.95	12°	50	4	Request model
KCVT2010L4 0450	1	R0.5	4	0.75	0.95	12°	50	4	Request model
KCVT2010L4 0660	1	R0.5	4	0.75	0.95	12°	60	6	Request model
KCVT2010L5 0450	1	R0.5	5	0.75	0.95	12°	50	4	Request model
KCVT2010L6 0450	1	R0.5	6	0.75	0.95	12°	50	4	Request model
KCVT2010L6 0660	1	R0.5	6	0.75	0.95	12°	60	6	Request model
KCVT2010L7 0450	1	R0.5	7	0.75	0.95	12°	50	4	Request model
KCVT2010L8 0450	1	R0.5	8	0.75	0.95	12°	50	4	Request model
KCVT2010L8 0660	1	R0.5	8	0.75	0.95	12°	60	6	Request model
KCVT2010L9 0450	1	R0.5	9	0.75	0.95	12°	50	4	Request model
KCVT2010L10 0450	1	R0.5	10	0.75	0.95	12°	50	4	Request model
KCVT2010L10 0660	1	R0.5	10	0.75	0.95	12°	60	6	Request model
KCVT2010L12 0450	1	R0.5	12	0.75	0.95	12°	50	4	Request model
KCVT2010L14 0450	1	R0.5	14	0.75	0.95	12°	50	4	Request model
KCVT2010L16 0450	1	R0.5	16	0.75	0.95	12°	50	4	Request model
KCVT2010L18 0460	1	R0.5	18	0.75	0.95	12°	60	4	Request model
KCVT2010L20 0460	1	R0.5	20	0.75	0.95	12°	60	4	Request model
KCVT2010L22 0460	1	R0.5	22	0.75	0.95	12°	60	4	Request model
KCVT2012L4 0450	1.2	R0.6	4	1	1.14	11°	50	4	Request model
KCVT2012L6 0450	1.2	R0.6	6	1	1.14	11°	50	4	Request model
KCVT2012L8 0450	1.2	R0.6	8	1	1.14	11°	50	4	Request model
KCVT2012L10 0450	1.2	R0.6	10	1	1.14	11°	50	4	Request model
KCVT2012L12 0450	1.2	R0.6	12	1	1.14	11°	50	4	Request model
KCVT2012L14 0450	1.2	R0.6	14	1	1.14	11°	50	4	Request model
KCVT2012L16 0450	1.2	R0.6	16	1	1.14	11°	50	4	Request model
KCVT2014L8 0450	1.4	R0.7	8	1.1	1.34	11°	50	4	Request model
KCVT2014L12 0450	1.4	R0.7	12	1.1	1.34	11°	50	4	Request model
KCVT2014L16 0450	1.4	R0.7	16	1.1	1.34	11°	50	4	Request model
KCVT2015L4 0450	1.5	R0.75	4	1.2	1.42	11°	50	4	Request model
KCVT2015L6 0450	1.5	R0.75	6	1.2	1.42	11°	50	4	Request model
KCVT2015L6 0660	1.5	R0.75	6	1.2	1.42	11°	60	6	Request model
KCVT2015L8 0450	1.5	R0.75	8	1.2	1.42	11°	50	4	Request model
KCVT2015L8 0660	1.5	R0.75	8	1.2	1.42	11°	60	6	Request model
KCVT2015L10 0450	1.5	R0.75	10	1.2	1.42	11°	50	4	Request model
KCVT2015L10 0660	1.5	R0.75	10	1.2	1.42	11°	60	6	Request model
KCVT2015L12 0450	1.5	R0.75	12	1.2	1.42	11°	50	4	Request model
KCVT2015L12 0660	1.5	R0.75	12	1.2	1.42	11°	60	6	Request model
KCVT2015L14 0450	1.5	R0.75	14	1.2	1.42	11°	50	4	Request model
KCVT2015L16 0450	1.5	R0.75	16	1.2	1.42	11°	50	4	Request model
KCVT2015L18 0460	1.5	R0.75	18	1.2	1.42	11°	60	4	Request model
KCVT2015L20 0460	1.5	R0.75	20	1.2	1.42	11°	60	4	Request model
KCVT2015L25 0460	1.5	R0.75	25	1.2	1.42	11°	60	4	Request model
KCVT2015L30 0475	1.5	R0.75	30	1.2	1.42	11°	75	4	Request model
KCVT2016L8 0450	1.6	R0.8	8	1.3	1.52	11°	50	4	Request model
KCVT2016L12 0450	1.6	R0.8	12	1.3	1.52	11°	50	4	Request model
KCVT2016L16 0450	1.6	R0.8	16	1.3	1.52	11°	50	4	Request model
KCVT2016L20 0460	1.6	R0.8	20	1.3	1.52	11°	60	4	Request model
KCVT2020L6 0450	2	R1	6	1.6	1.9	11°	50	4	Request model
KCVT2020L8 0450	2	R1	8	1.6	1.9	11°	50	4	Request model
KCVT2020L8 0660	2	R1	8	1.6	1.9	11°	60	6	Request model
KCVT2020L10 0450	2	R1	10	1.6	1.9	11°	50	4	Request model
KCVT2020L10 0660	2	R1	10	1.6	1.9	11°	60	6	Request model
KCVT2020L12 0450	2	R1	12	1.6	1.9	11°	50	4	Request model
KCVT2020L12 0660	2	R1	12	1.6	1.9	11°	60	6	Request model
KCVT2020L14 0450	2	R1	14	1.6	1.9	11°	50	4	Request model
KCVT2020L16 0450	2	R1	16	1.6	1.9	11°	50	4	Request model
KCVT2020L16 0660	2	R1	16	1.6	1.9	11°	60	6	Request model
KCVT2020L18 0460	2	R1	18	1.6	1.9	11°	60	4	Request model
KCVT2020L20 0460	2	R1	20	1.6	1.9	11°	60	4	Request model
KCVT2020L22 0460	2	R1	22	1.6	1.9	11°	60	4	Request model
KCVT2020L25 0460	2	R1	25	1.6	1.9	11°	60	4	Request model
KCVT2020L30 0475	2	R1	30	1.6	1.9	11°	75	4	Request model
KCVT2020L35 0475	2	R1	35	1.6	1.9	11°	75	4	Request model
KCVT2020L40 0475	2	R1	40	1.6	1.9	11°	75	4	Request model
KCVT2025L6 0450	2.5	R1.25	6	2	2.4	11°	50	4	Request model
KCVT2025L8 0450	2.5	R1.25	8	2	2.4	11°	50	4	Request model
KCVT2025L10 0450	2.5	R1.25	10	2	2.4	11°	50	4	Request model
KCVT2025L12 0450	2.5	R1.25	12	2	2.4	11°	50	4	Request model
KCVT2025L16 0450	2.5	R1.25	16	2	2.4	11°	50	4	Request model
KCVT2025L20 0460	2.5	R1.25	20	2	2.4	11°	60	4	Request model
KCVT2025L25 0460	2.5	R1.25	25	2	2.4	11°	60	4	Request model
KCVT2025L30 0475	2.5	R1.25	30	2	2.4	11°	75	4	Request model
KCVT2025L35 0475	2.5	R1.25	35	2	2.4	11°	75	4	Request model
KCVT2030L8 0450	3	R1.5	8	2.4	2.9	11°	50	4	Request model
KCVT2030L10 0450	3	R1.5	10	2.4	2.9	11°	50	4	Request model
KCVT2030L10 0660	3	R1.5	10	2.4	2.9	11°	60	6	Request model
KCVT2030L12 0450	3	R1.5	12	2.4	2.9	11°	50	4	Request model
KCVT2030L12 0660	3	R1.5	12	2.4	2.9	11°	60	6	Request model
KCVT2030L14 0450	3	R1.5	14	2.4	2.9	11°	50	4	Request model
KCVT2030L14 0660	3	R1.5	14	2.4	2.9	11°	60	6	Request model
KCVT2030L16 0450	3	R1.5	16	2.4	2.9	11°	50	4	Request model
KCVT2030L16 0660	3	R1.5	16	2.4	2.9	11°	60	6	Request model
KCVT2030L20 0660	3	R1.5	20	2.4	2.9	11°	60	6	Request model
KCVT2030L25 0675	3	R1.5	25	2.4	2.9	11°	75	6	Request model
KCVT2030L30 0675	3	R1.5	30	2.4	2.9	11°	75	6	Request model
KCVT2030L35 0675	3	R1.5	35	2.4	2.9	11°	75	6	Request model
KCVT2030L40 06100	3	R1.5	40	2.4	2.9	11°	100	6	Request model
KCVT2035L16 0660	3.5	R1.75	16	2.8	3.4	11°	60	6	Request model
KCVT2035L20 0660	3.5	R1.75	20	2.8	3.4	11°	60	6	Request model
KCVT2035L25 0675	3.5	R1.75	25	2.8	3.4	11°	75	6	Request model
KCVT2035L30 0675	3.5	R1.75	30	2.8	3.4	11°	75	6	Request model
KCVT2035L35 0675	3.5	R1.75	35	2.8	3.4	11°	75	6	Request model
KCVT2035L40 06100	3.5	R1.75	40	2.8	3.4	11°	100	6	Request model
KCVT2035L45 06100	3.5	R1.75	45	2.8	3.4	11°	100	6	Request model
KCVT2040L12 0660	4	R2	12	3.2	3.9	11°	60	6	Request model
KCVT2040L14 0660	4	R2	14	3.2	3.9	11°	60	6	Request model
KCVT2040L16 0660	4	R2	16	3.2	3.9	11°	60	6	Request model
KCVT2040L20 0660	4	R2	20	3.2	3.9	11°	60	6	Request model
KCVT2040L25 0675	4	R2	25	3.2	3.9	11°	75	6	Request model
KCVT2040L30 0675	4	R2	30	3.2	3.9	11°	75	6	Request model
KCVT2040L35 0675	4	R2	35	3.2	3.9	11°	75	6	Request model
KCVT2040L40 06100	4	R2	40	3.2	3.9	11°	100	6	Request model
KCVT2040L45 06100	4	R2	45	3.2	3.9	11°	100	6	Request model
KCVT2040L50 06100	4	R2	50	3.2	3.9	11°	100	6	Request model
KCVT2050L16 0660	5	R2.5	16	4	4.85	11°	60	6	Request model
KCVT2050L20 0660	5	R2.5	20	4	4.85	11°	60	6	Request model
KCVT2050L25 0675	5	R2.5	25	4	4.85	11°	75	6	Request model
KCVT2050L30 0675	5	R2.5	30	4	4.85	11°	75	6	Request model
KCVT2050L35 0675	5	R2.5	35	4	4.85	11°	75	6	Request model
KCVT2050L40 06100	5	R2.5	40	4	4.85	11°	100	6	Request model
KCVT2050L45 06100	5	R2.5	45	4	4.85	11°	100	6	Request model
KCVT2050L50 06100	5	R2.5	50	4	4.85	11°	100	6	Request model
No standard models match the selected filters.

VGPHX-KCVT2001L0.2 0450

Key specifications

Standard Models and Dimensions

Quick Links

Contact info
