VGPHX-KCVE4008L2 0450

Tool Type: 4-Flute Long Neck Square End Mill
Product Series: V.G PHX
Hardness Range: HRC 50–64
Flute Count: 4

Application: Automotive Lighting Molds, Copper Machining, Deep Cavity Finishing, Electronic Molds, Precision Machining
Workpiece Material: Copper Alloy, Hardened Steel

Filter standard models

Model number

Diameter

Radius

Neck length

Shank

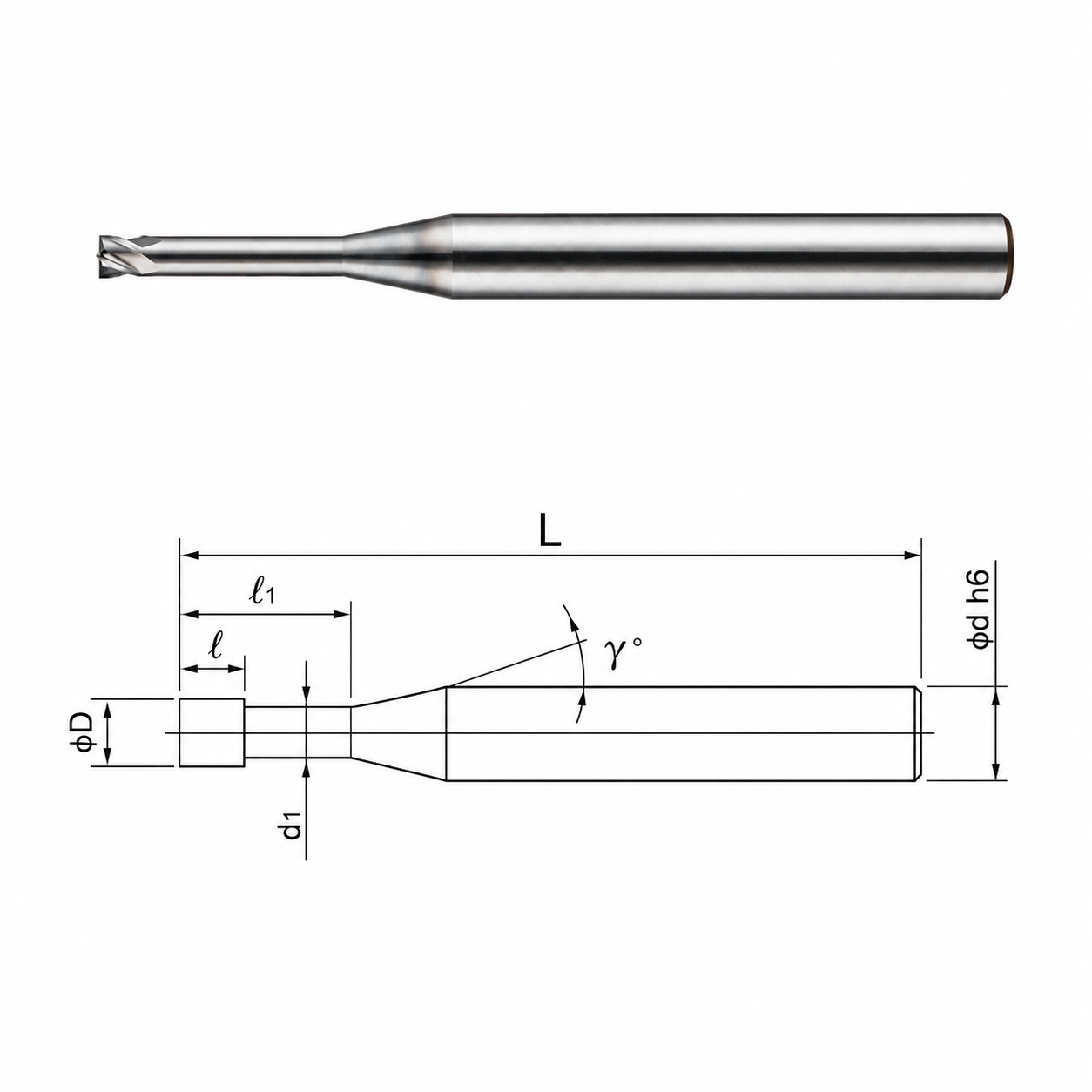

Standard model dimensions for VGPHX-KCVE4008L2 0450
Model number	D	Neck Length	LOC	Neck Dia.	Taper	OAL	Shank	Action
KCVE4008L2 0450	0.8	2	0.6	0.76	12°	50	4	Request model
KCVE4008L3 0450	0.8	3	0.6	0.76	12°	50	4	Request model
KCVE4008L4 0450	0.8	4	0.6	0.76	12°	50	4	Request model
KCVE4008L5 0450	0.8	5	0.6	0.76	12°	50	4	Request model
KCVE4008L6 0450	0.8	6	0.6	0.76	12°	50	4	Request model
KCVE4008L7 0450	0.8	7	0.6	0.76	12°	50	4	Request model
KCVE4008L8 0450	0.8	8	0.6	0.76	12°	50	4	Request model
KCVE4008L10 0450	0.8	10	0.6	0.76	12°	50	4	Request model
KCVE4008L12 0450	0.8	12	0.6	0.76	12°	50	4	Request model
KCVE4008L16 0450	0.8	16	0.6	0.76	12°	50	4	Request model
KCVE4010L3 0450	1	3	0.75	0.95	12°	50	4	Request model
KCVE4010L4 0450	1	4	0.75	0.95	12°	50	4	Request model
KCVE4010L5 0450	1	5	0.75	0.95	12°	50	4	Request model
KCVE4010L6 0450	1	6	0.75	0.95	12°	50	4	Request model
KCVE4010L7 0450	1	7	0.75	0.95	12°	50	4	Request model
KCVE4010L8 0450	1	8	0.75	0.95	12°	50	4	Request model
KCVE4010L9 0450	1	9	0.75	0.95	12°	50	4	Request model
KCVE4010L10 0450	1	10	0.75	0.95	12°	50	4	Request model
KCVE4010L12 0450	1	12	0.75	0.95	12°	50	4	Request model
KCVE4010L14 0450	1	14	0.75	0.95	12°	50	4	Request model
KCVE4010L16 0450	1	16	0.75	0.95	12°	50	4	Request model
KCVE4010L18 0460	1	18	0.75	0.95	12°	60	4	Request model
KCVE4010L20 0460	1	20	0.75	0.95	12°	60	4	Request model
KCVE4010L22 0460	1	22	0.75	0.95	12°	60	4	Request model
KCVE4012L6 0450	1.2	6	1	1.14	11°	50	4	Request model
KCVE4012L8 0450	1.2	8	1	1.14	11°	50	4	Request model
KCVE4012L10 0450	1.2	10	1	1.14	11°	50	4	Request model
KCVE4012L12 0450	1.2	12	1	1.14	11°	50	4	Request model
KCVE4014L6 0450	1.4	6	1.1	1.34	11°	50	4	Request model
KCVE4014L12 0450	1.4	12	1.1	1.34	11°	50	4	Request model
KCVE4014L16 0450	1.4	16	1.1	1.34	11°	50	4	Request model
KCVE4015L4 0450	1.5	4	1.2	1.42	11°	50	4	Request model
KCVE4015L6 0450	1.5	6	1.2	1.42	11°	50	4	Request model
KCVE4015L8 0450	1.5	8	1.2	1.42	11°	50	4	Request model
KCVE4015L10 0450	1.5	10	1.2	1.42	11°	50	4	Request model
KCVE4015L12 0450	1.5	12	1.2	1.42	11°	50	4	Request model
KCVE4015L14 0450	1.5	14	1.2	1.42	11°	50	4	Request model
KCVE4015L16 0450	1.5	16	1.2	1.42	11°	50	4	Request model
KCVE4015L18 0460	1.5	18	1.2	1.42	11°	60	4	Request model
KCVE4015L20 0460	1.5	20	1.2	1.42	11°	60	4	Request model
KCVE4015L25 0460	1.5	25	1.2	1.42	11°	60	4	Request model
KCVE4016L8 0450	1.6	8	1.3	1.52	11°	50	4	Request model
KCVE4016L12 0450	1.6	12	1.3	1.52	11°	50	4	Request model
KCVE4016L16 0450	1.6	16	1.3	1.52	11°	50	4	Request model
KCVE4018L6 0450	1.8	6	1.4	1.72	11°	50	4	Request model
KCVE4018L8 0450	1.8	8	1.4	1.72	11°	50	4	Request model
KCVE4018L10 0450	1.8	10	1.4	1.72	11°	50	4	Request model
KCVE4018L12 0450	1.8	12	1.4	1.72	11°	50	4	Request model
KCVE4018L14 0450	1.8	14	1.4	1.72	11°	50	4	Request model
KCVE4018L16 0450	1.8	16	1.4	1.72	11°	50	4	Request model
KCVE4018L18 0460	1.8	18	1.4	1.72	11°	60	4	Request model
KCVE4020L6 0450	2	6	1.6	1.9	11°	50	4	Request model
KCVE4020L8 0450	2	8	1.6	1.9	11°	50	4	Request model
KCVE4020L10 0450	2	10	1.6	1.9	11°	50	4	Request model
KCVE4020L12 0450	2	12	1.6	1.9	11°	50	4	Request model
KCVE4020L14 0450	2	14	1.6	1.9	11°	50	4	Request model
KCVE4020L16 0450	2	16	1.6	1.9	11°	50	4	Request model
KCVE4020L18 0460	2	18	1.6	1.9	11°	60	4	Request model
KCVE4020L20 0460	2	20	1.6	1.9	11°	60	4	Request model
KCVE4020L25 0460	2	25	1.6	1.9	11°	60	4	Request model
KCVE4020L30 0475	2	30	1.6	1.9	11°	75	4	Request model
KCVE4020L35 0475	2	35	1.6	1.9	11°	75	4	Request model
KCVE4025L8 0450	2.5	8	2	2.4	11°	50	4	Request model
KCVE4025L10 0450	2.5	10	2	2.4	11°	50	4	Request model
KCVE4025L12 0450	2.5	12	2	2.4	11°	50	4	Request model
KCVE4025L16 0450	2.5	16	2	2.4	11°	50	4	Request model
KCVE4025L20 0460	2.5	20	2	2.4	11°	60	4	Request model
KCVE4025L25 0460	2.5	25	2	2.4	11°	60	4	Request model
KCVE4025L30 0475	2.5	30	2	2.4	11°	75	4	Request model
KCVE4025L35 0475	2.5	35	2	2.4	11°	75	4	Request model
KCVE4030L10 0450	3	10	2.4	2.9	11°	50	4	Request model
KCVE4030L10 0660	3	10	2.4	2.9	11°	60	6	Request model
KCVE4030L12 0450	3	12	2.4	2.9	11°	50	4	Request model
KCVE4030L12 0660	3	12	2.4	2.9	11°	60	6	Request model
KCVE4030L16 0450	3	16	2.4	2.9	11°	50	4	Request model
KCVE4030L16 0660	3	16	2.4	2.9	11°	60	6	Request model
KCVE4030L20 0660	3	20	2.4	2.9	11°	60	6	Request model
KCVE4030L25 0675	3	25	2.4	2.9	11°	75	6	Request model
KCVE4030L30 0675	3	30	2.4	2.9	11°	75	6	Request model
KCVE4030L35 0675	3	35	2.4	2.9	11°	75	6	Request model
KCVE4030L40 06100	3	40	2.4	2.9	11°	100	6	Request model
KCVE4040L12 0660	4	12	3.2	3.9	11°	60	6	Request model
KCVE4040L16 0660	4	16	3.2	3.9	11°	60	6	Request model
KCVE4040L20 0660	4	20	3.2	3.9	11°	60	6	Request model
KCVE4040L25 0675	4	25	3.2	3.9	11°	75	6	Request model
KCVE4040L30 0675	4	30	3.2	3.9	11°	75	6	Request model
KCVE4040L35 0675	4	35	3.2	3.9	11°	75	6	Request model
KCVE4040L40 06100	4	40	3.2	3.9	11°	100	6	Request model
KCVE4040L45 06100	4	45	3.2	3.9	11°	100	6	Request model
KCVE4040L50 06100	4	50	3.2	3.9	11°	100	6	Request model
KCVE4050L16 0660	5	16	4	4.85	11°	60	6	Request model
KCVE4050L25 0675	5	25	4	4.85	11°	75	6	Request model
KCVE4050L35 0675	5	35	4	4.85	11°	75	6	Request model
KCVE4050L50 06100	5	50	4	4.85	11°	100	6	Request model
