VGEF-KXVP2001 0450

VGEF-KXVP2001 0450

Key specifications

Tool Type
2-Flute Ball Nose End Mill
Product Series
V.G EF
Hardness Range
HRC 50–64
Flute Count
2
Application
Air Cooling, Automotive Mold and Aerospace Part Machining, Dry Cutting
Workpiece Material
Alloy Steel, Aluminum Alloy, Carbon Steel, Cast Iron, Copper Alloy, Graphite, Hardened Steel, Heat-resistant Alloy, Plastics, Pre-hardened Steel, Stainless Steel, Titanium Alloy

Available sizes

Standard Models and Dimensions

Search by model number or combine dimensional filters. All dimensions are in millimetres.

61 Standard models
Filter standard models

61 models matching

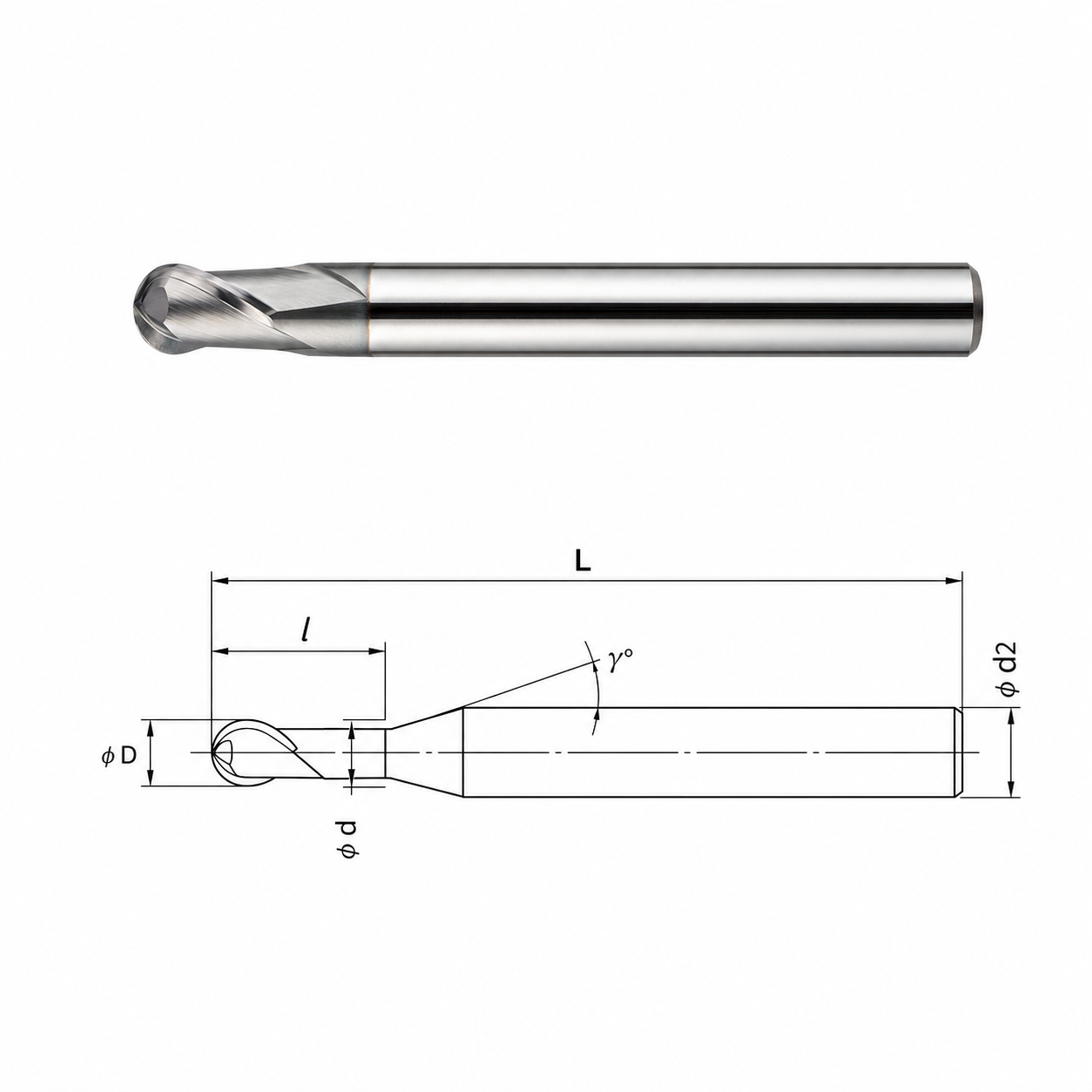

Standard model dimensions for VGEF-KXVP2001 0450
Model number DRNeck LengthLOCNeck Dia.TaperOALShank Action
KXVP2001 0450 0.1R0.05—0.1—12°504 Request model
KXVP20015 0450 0.15R0.075—0.15—12°504 Request model
KXVP2002 0450 0.2R0.1—0.2—12°504 Request model
KXVP2003 0450 0.3R0.15—0.3—12°504 Request model
KXVP2004 0450 0.4R0.2—0.6—12°504 Request model
KXVP2005 0450 0.5R0.25—0.8—12°504 Request model
KXVP2006 0450 0.6R0.3—0.9—12°504 Request model
KXVP2008 0450 0.8R0.4—1.2—12°504 Request model
KXVP2010 0450 1R0.520.750.9512°504 Request model
KXVP2010 0650 1R0.52.50.750.9512°506 Request model
KXVP2010 0660 1R0.52.50.750.9512°606 Request model
KXVP2010 0675 1R0.52.50.750.9512°756 Request model
KXVP2010 06100 1R0.52.50.750.9512°1006 Request model
KXVP2012 0450 1.2R0.62.40.91.1411°504 Request model
KXVP2015 0450 1.5R0.7531.21.4211°504 Request model
KXVP2015 0650 1.5R0.7541.21.4211°506 Request model
KXVP2015 0660 1.5R0.7541.21.4211°606 Request model
KXVP2015 0675 1.5R0.7541.21.4211°756 Request model
KXVP2015 06100 1.5R0.7541.21.4211°1006 Request model
KXVP2020 0450 2R141.61.911°504 Request model
KXVP2020 0650 2R161.61.911°506 Request model
KXVP2020 0660 2R161.61.911°606 Request model
KXVP2020 0675 2R161.61.911°756 Request model
KXVP2020 06100 2R161.61.911°1006 Request model
KXVP2025 0450 2.5R1.25522.411°504 Request model
KXVP2025 0650 2.5R1.25722.411°506 Request model
KXVP2025 0660 2.5R1.25722.411°606 Request model
KXVP2025 0675 2.5R1.25722.411°756 Request model
KXVP2025 06100 2.5R1.25722.411°1006 Request model
KXVP2030 0450 3R1.562.42.911°504 Request model
KXVP2030 0650 3R1.582.42.911°506 Request model
KXVP2030 0660 3R1.582.42.911°606 Request model
KXVP2030 0675 3R1.582.42.911°756 Request model
KXVP2030 06100 3R1.582.42.911°1006 Request model
KXVP2040 0450 4R2—6——504 Request model
KXVP2040 0475 4R2—6——754 Request model
KXVP2040 0650 4R2103.23.911°506 Request model
KXVP2040 0660 4R2103.23.911°606 Request model
KXVP2040 0675 4R2103.23.911°756 Request model
KXVP2040 06100 4R2103.23.911°1006 Request model
KXVP2050 0650 5R2.51244.8511°506 Request model
KXVP2050 0660 5R2.51244.8511°606 Request model
KXVP2050 0675 5R2.51244.8511°756 Request model
KXVP2050 06100 5R2.51244.8511°1006 Request model
KXVP2060 0650 6R3—9——506 Request model
KXVP2060 0660 6R3—9——606 Request model
KXVP2060 0675 6R3—9——756 Request model
KXVP2060 06100 6R3—9——1006 Request model
KXVP2080 0860 8R4—12——608 Request model
KXVP2080 0875 8R4—12——758 Request model
KXVP2080 08100 8R4—12——1008 Request model
KXVP2080 08125 8R4—12——1258 Request model
KXVP2080 08150 8R4—12——1508 Request model
KXVP2100 1075 10R5—15——7510 Request model
KXVP2100 10100 10R5—15——10010 Request model
KXVP2100 10125 10R5—15——12510 Request model
KXVP2100 10150 10R5—15——15010 Request model
KXVP2120 1275 12R6—18——7512 Request model
KXVP2120 12100 12R6—18——10012 Request model
KXVP2120 12125 12R6—18——12512 Request model
KXVP2120 12150 12R6—18——15012 Request model
